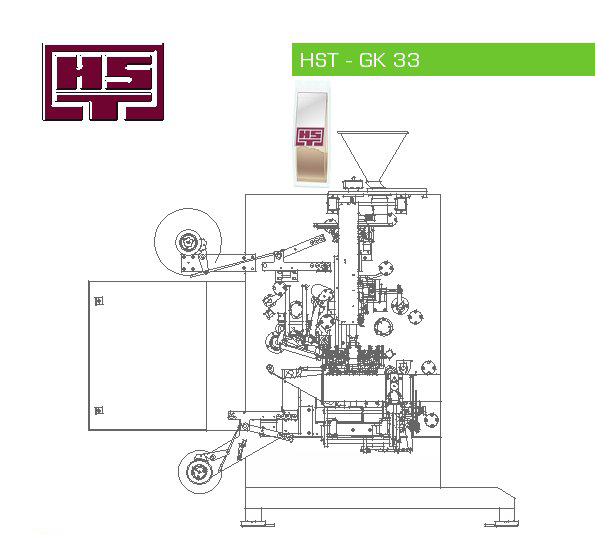

The HST-GK 33 is a single chamber pot bag machine. It produces single chamber bags, which are then sealed in a flavor sealed foil envelope.
|
|
GK33 |
Technical data |
|
|
Bag Sizes with foil |
[cm] |
13,8 x 7,2 |
Filling quantity |
[g/ml] |
max. 5/16 |
Label sizes |
[cm] |
8 x 5 |
Maximum speed |
[Btl/ min] |
50 |
Power connection |
[kW] |
3,3 |
Energy consumption |
[kWh] |
2,3 |
Dimensions |
[cm] |
210 x 120 x 230 |
Weight |
[kg] |
900 |
Compressed Air |
[bar] |
6 |
Control |
|
Siemens SPS S7 |
Operation |
|
OP 7 |
