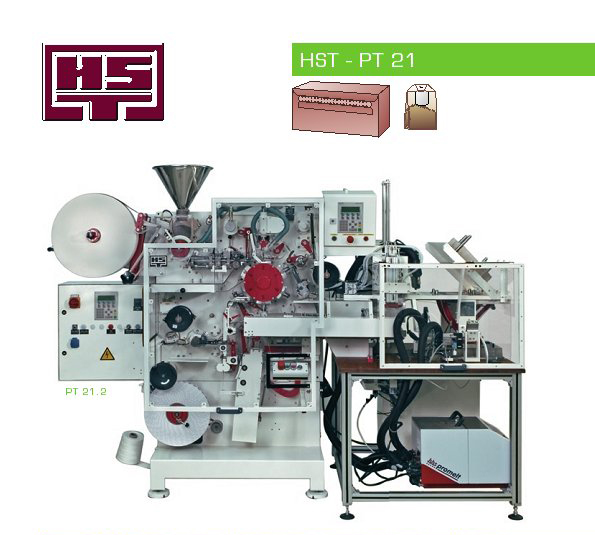

In the HST-PT 21 is the base version of HST. This machine produces a double-chamber bag with string and tag. This machine is available as manual packing machine (PT21), also with single row cartoning device up to 25 tea bags/box (PT21.1) and with multirow cartoning device for boxes up to 100 tea bags (PT21.2).
|
|
|
PT21 |
PT21.1 |
PT21.2 |
|
Technical data |
|
|
|
|
|
Bag Sizes |
|
A, B, C |
A, B, C |
A, B, C |
|
Label sizes |
|
E1, E2* |
E1, E2* |
E1, E2* |
|
Maximum speed |
[Btl/ min] |
max. 175 |
max. 175 |
max. 175 |
|
Power connection |
[kW] |
1 |
1 |
7,5 |
|
Energy consumption |
[kWh] |
0,65 |
0,65 |
4,25 |
|
Dimensions |
[cm] |
255 x 90 x 195 |
240 x 100 x 195 |
280 x 100 x 195 |
|
Weight |
[kg] |
900 |
1.035 |
1.250 |
|
Compressed Air |
[bar] |
6 |
6 |
6 |
|
Control |
|
Siemens SPS S7 |
Siemens SPS S7 |
Siemens SPS S7 |
|
Operation |
|
OP 7 |
OP 7 |
OP 7 |
|
*not for bag size A |
|
|
|
|
|
Label size: E1 = 23 x 28 mm |
E2 = 28 x 32 mm Beutelgrößen: A = 44 x 64 mm ≙ 10 ml |
B = 40 x 60 mm ≙ 6 ml C = 59 x 80 mm ≙ 15 ml |
|
|
