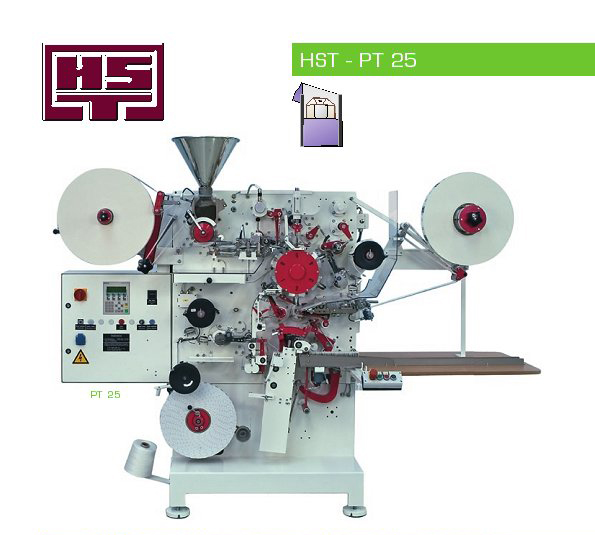

The HST-PT 25 produces double bags with string and tag, which are individually packed into paper envelope. This machine is available as manual packing machine (PT25), also with single row cartoning device up to 25 tea
|
bags/box (PT25.1) and with multirow cartoning device for boxes up to 100 tea bags (PT25.2). |
|
|||
|
|
|
PT25 |
PT25.1 |
PT25.2 |
|
Technical data |
|
|
|
|
|
Bag Sizes |
|
A, B |
A, B |
A, B |
|
Label sizes |
|
E1, E2* |
E1, E2* |
E1, E2* |
|
Maximum speed |
[Btl/ min] |
165 |
165 |
165 |
|
Power connection |
[kW] |
1 |
1 |
7,5 |
|
Energy consumption |
[kWh] |
0,65 |
0,65 |
4,25 |
|
Dimensions |
[cm] |
255 x 90 x 195 |
240 x 100 x 195 |
290 x 100 x 195 |
|
Weight |
[kg] |
925 |
1.050 |
1.300 |
|
Air |
[bar] |
|
|
|
|
Control |
|
Siemens SPS S7 |
Siemens SPS S7 |
Siemens SPS S7 |
|
Operation |
|
OP 7 |
OP 7 |
OP 7 |
|
*not for bag size A |
|
|
|
|
|
Label size: E1 = 23 x 28 mm |
E2 = 28 x 32 mm Beutelgrößen: A = 44 x 64 mm ≙ 10 ml |
B = 40 x 60 mm ≙ 6 ml C = 59 x 80 mm ≙ 15 ml |
|
|
