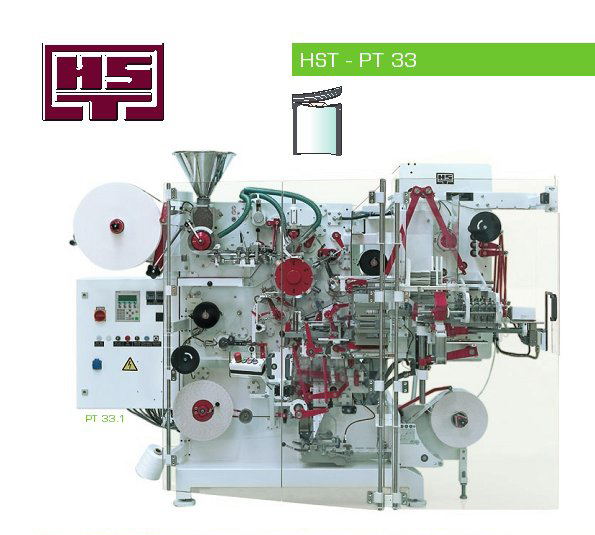

In the HST-PT 33 is a double-chamber tea bag machine that produces not heat-sealable filter paper, double chamber tea bags with string and tag and then these bags aroma-tight in sealed foil envelope. This machine is available as manual packing machine (PT33), also with single row cartoning device up to 25 tea bags/box (PT33.1) and with multirow cartoning device for boxes up to 100 tea bags (PT33.2).
|
|
PT33 |
PT33.1 |
PT33.2 |
Technical data |
|
|
|
|
Bag Sizes |
|
A, B |
A, B |
A, B |
Label sizes |
|
E1, E2* |
E1, E2* |
E1, E2* |
Maximum speed |
[Btl/ min] |
max. 165 |
max. 165 |
max. 165 |
Power connection |
[kW] |
1,65 |
1,65 |
8,05 |
Energy consumption |
[kWh] |
1,05 |
1,05 |
4,65 |
Dimensions |
[cm] |
280 x 120 x 200 |
280 x 120 x 200 |
380 x 120 x 200 |
Weight |
[kg] |
1.300 |
1.800 |
1.850 |
Compressed Air |
[bar] |
6 |
6 |
6 |
Control |
|
Siemens SPS S7 |
Siemens SPS S7 |
Siemens SPS S7 |
Operation |
|
OP 7 |
OP 7 |
OP 7 |
*not for bag size A |
|
|
|
|
Label size: E1 = 23 x 28 mm |
E2 = 28 x 32 mm Beutelgrößen: A = 44 x 64 mm ≙ 10 ml |
B = 40 x 60 mm ≙ 6 ml C = 59 x 80 mm ≙ 15 ml |
|
|
